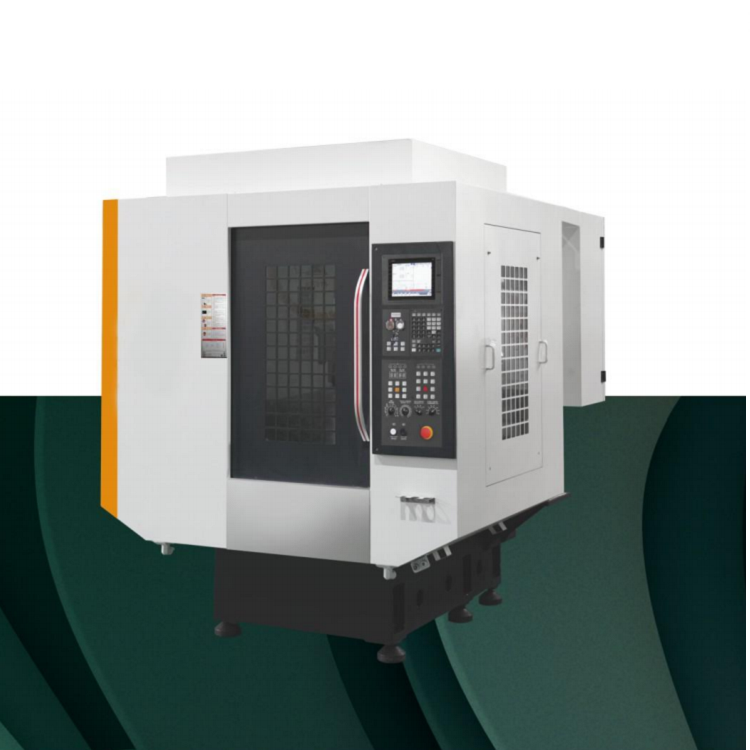

三轴数控加工中心TX-T1000三轴高速钻攻机


•主体结构采用高档Mihanna铸铁，结构坚固，轻便灵活，反应迅速，占地面积小;
•直连主轴，转速高、振动小、噪音低、温升低;能够长期高速加工;
•三轴采用精密直线滑轨;刚性高，噪音低，冲程快，稳定性好;
•三轴采用大直径滚珠丝杠，可满足不同进给速度和进给分辨率的要求;
•三轴电机和滚珠丝杠直接驱动，定位精度高，无背间隙问题;
•机构设计完全符合人体工程学原理，机械钣金盖的设计基于机器使用的便利性;



Mechanical characteristics
Items Unit T-600 T-1000 T-2000
Stroke
X-axis stroke mm 600 1000 2000
Y-axis stroke mm 450 500 500
Z-axis stroke mm 330 330 330
Spindlenose endto workbench mm 150-480 150-480 150-480
Spindle
Spindle rotation connection r.p.m 15000/20000 15000/20000 20000/24000
Spindletaper BT30 BT30 BT30
Spinde motor (continuous/30 split stop kw 5.5 5.5 5.5
X.Y.Z three-axis motor kw 1.5/1.5/3.0 2.0/2.0/3.0 3.0/3.0/3.0
Workbench
Workbench area mm 700*420 1100*500 2100*500
T-shaped groove (width
number of groovesXspacing) 		mm 3-14*125 3-18*100 3-18*100
Maximum load of workbench kg 300 400 600
Feed
Three-axisrapid displacement mm/min 48000 48000 36000
Chip feed rate mm/min 1-10000 1-10000 1-10000
Acouracy
Positioning accuracy mm ±0.005/300 ±0.005/300 ±0.005/300
Repeatability mm ±0.003/300 ±0.003/300 ±0.005/300
Others
System configuration FANUC/MITSUBISH
Number of cutting tools T 21 21 21
Maximum avalabletooldiameter mm 60/80 60/80 60/80
Tool exchange method Clamp arm type Clamp arm type Clamp arm type
Machine dimensions mm 1950*2455*2400 2700*2300*2500 3200*2400*2800
Machine weight kg 3300 4500 7500
*The specifications may change with the improvement ofquality,and we apologize for any inconveniencecaused.
